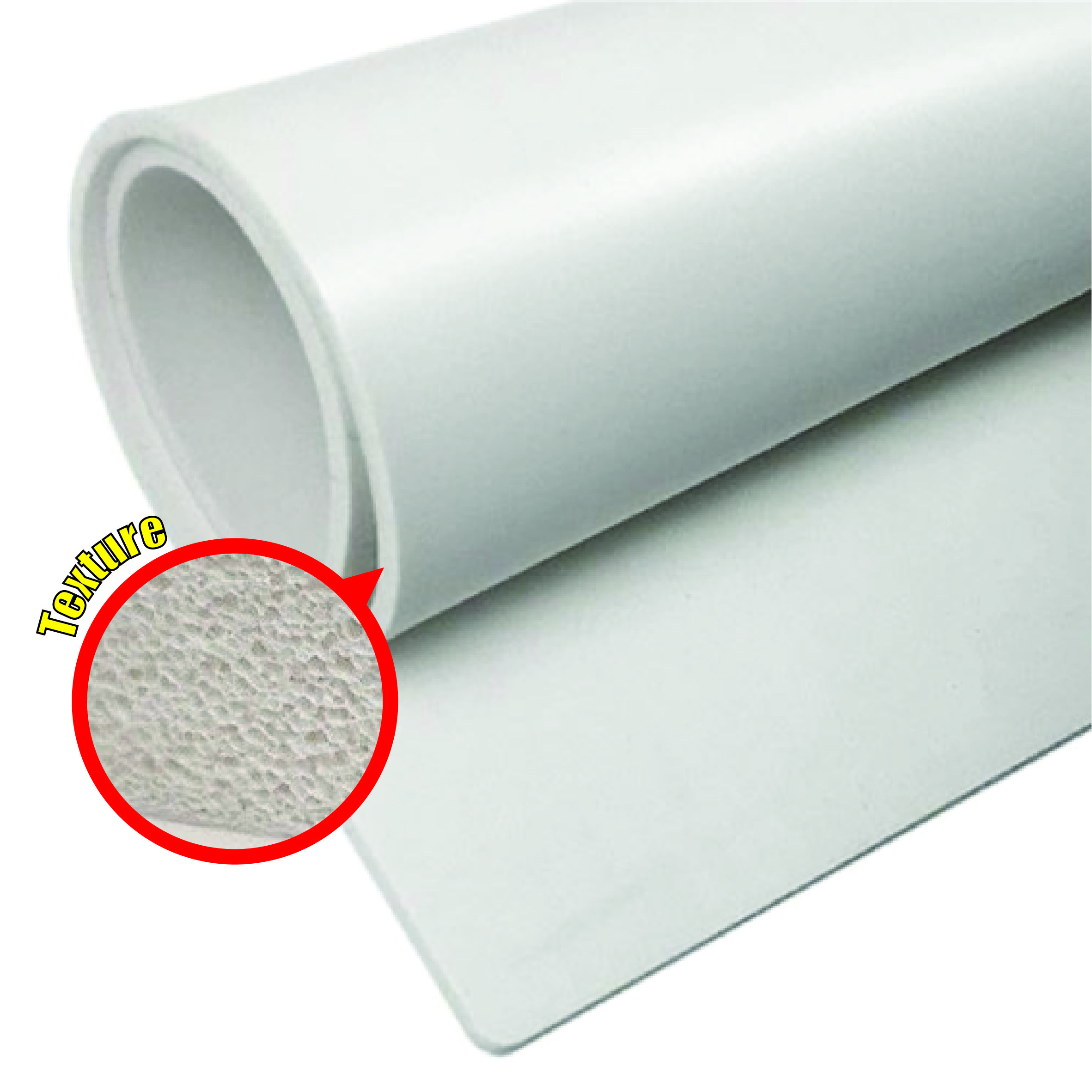

White Silicone Rubber Sponge Sheet

The silicone rubber sponge is the perfect product for times when a soft material that can be deformed easily is needed which standard rubber cannot provide. The silicone rubber sponge features a closed cell structure and a smoother outer wall which ensures that gas and liquids are unable to pass through the sponge. It provides excellent insulation and sealing properties. It can withstand temperatures from -40 to 200 degrees Celsius and has a tear strength of 200lb-f/inch. This product is also very easy to cut to size according to your own specifications.

Category:

*For more customize sizes and inquiries,
Please e-mail us

OR

Click the WhatsApp icon at the bottom right of Screen (For quickest response)

OR

Call 03-7983 3822


________________________________________________________________


Product Features

  • Tubing is manufactured with NEXSUS by paste extrusion process
  • Compliance – FDA paragragh 177.2600 (rubber articles intended for repeated use)
  • Temperature range: -40°C to 200°C continuous, 260°C intermittent
  • Elongation at break: 450% to 750%
  • Specific gravity: 1.15-1.2
  • Tear strength: 200lb–f/inch
  • Hardness: A55–60 Shore

Silicone Rubber Sponge (White) – 10m/roll

Thickness Width
2mm 1m
3mm 1m
4mm 1m
5mm 1m
6mm 1m
8mm 1m
10mm 1m
12mm 1m
15mm 1m
20mm 1m
25mm 1m

*For more customize sizes, please WhatsApp Mr Teh (016-2166 562).

PROPERTIES SPECIFICATION TYPICAL VALUES
Density, lbs / cubic in. Under 1/4 thick 0.025 Max 0.020
Density, lbs / cubic in. Over 1/4 thick 0.020 Max 0.018
Compression Deflection, PSI 6- 14 11
Compression Set, 22 hrs @ 212 °F 60% Max 29
Brittle Point °F -67 -103
Temperature Range °F N/A -103 to +450
Water Absorption 5% Max Pass
Tensile Strenght, PSI0 N/A 100
Elongation, % N/A 200
PROPERTIES SPECIFICATION TYPICAL VALUES
Thermal Conductivity BTU in. / hr.ft2 °F N/A 0.6

Environmental seal, as it is water and dust resistant. Transparent and lightweight. Versatile and cost-effective. Colorless, odorless and tasteless.
