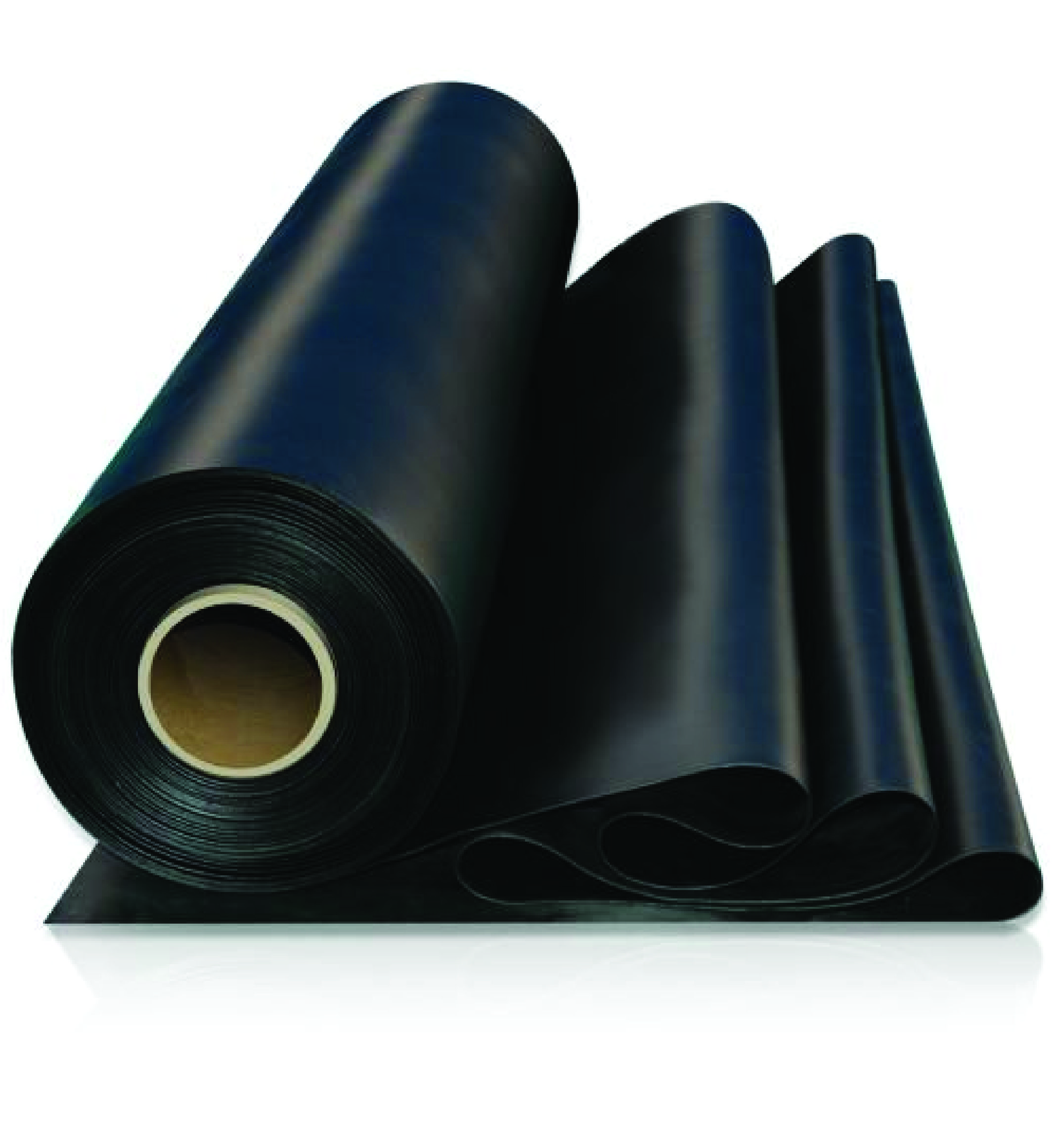

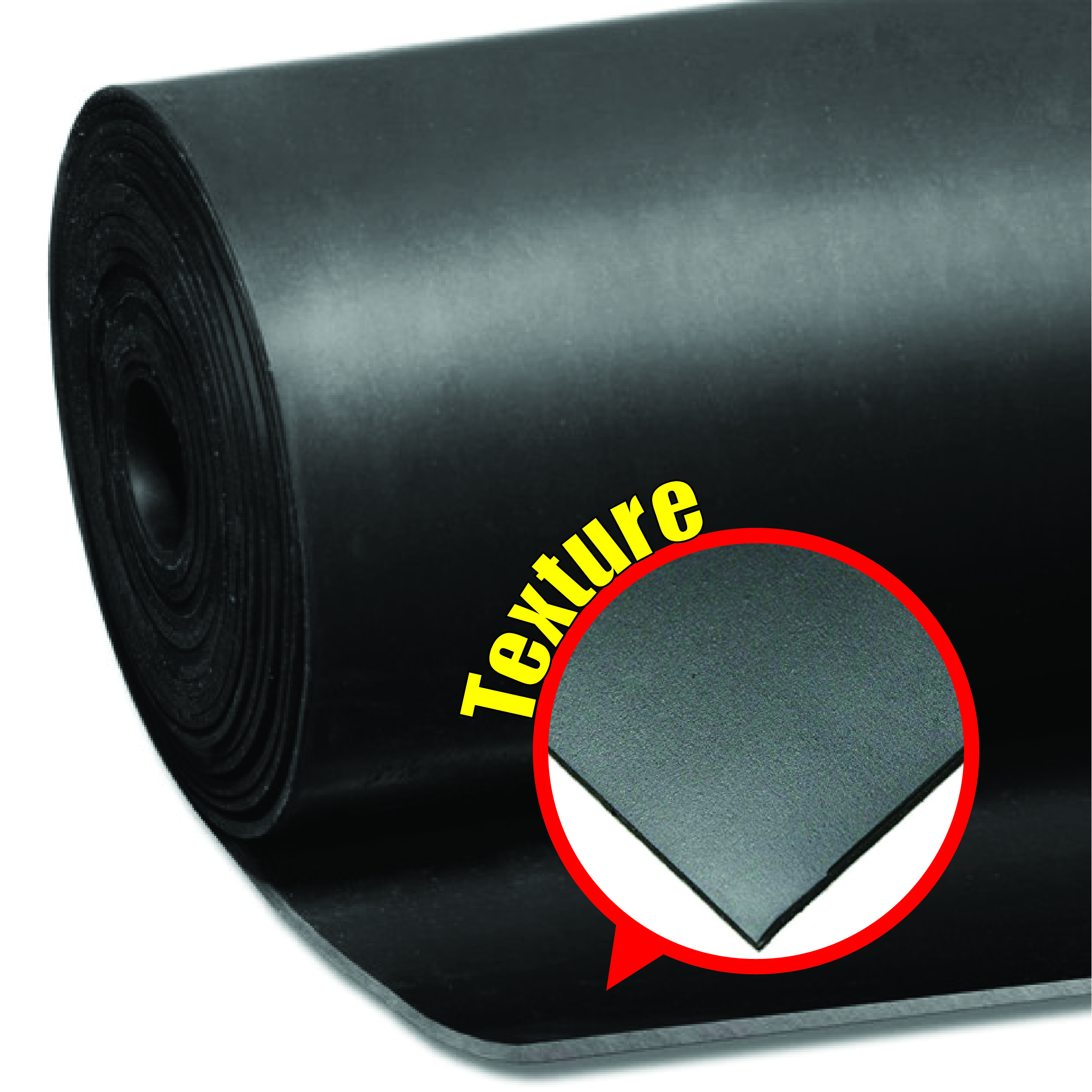

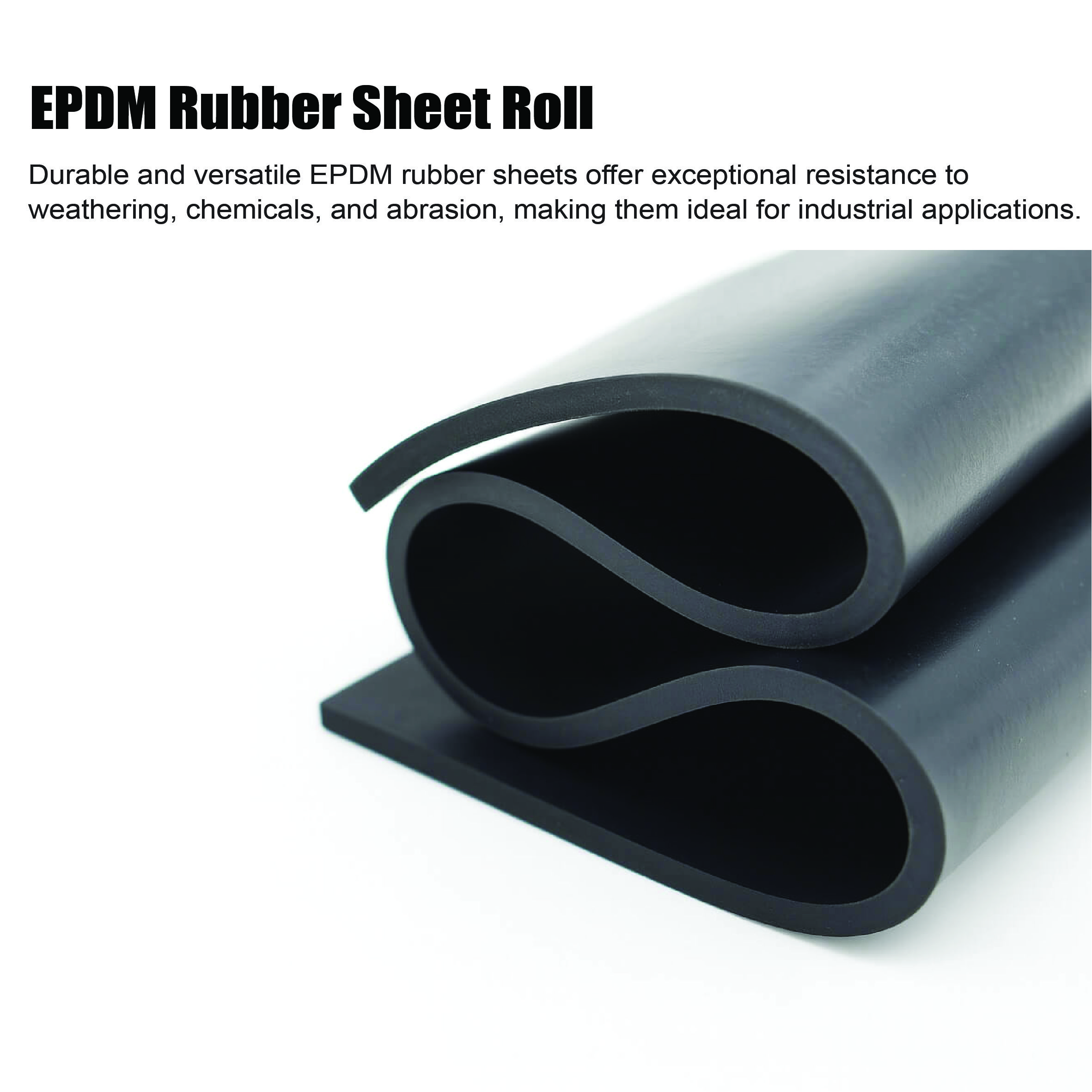

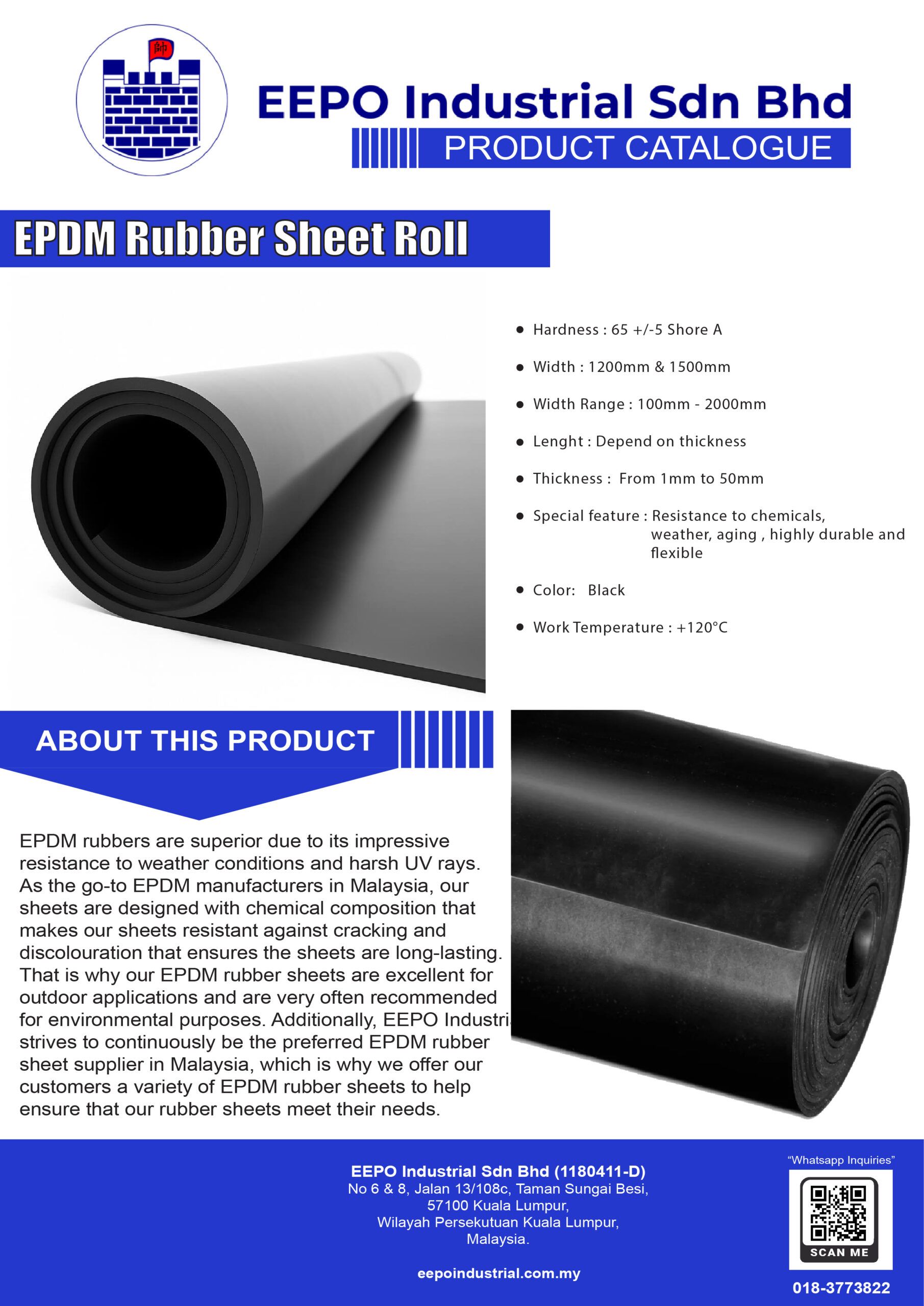

EPDM Rubber Sheet Roll

EPDM rubbers are superior due to its impressive resistance to weather conditions and harsh UV rays. As the go-to EPDM manufacturers in Malaysia, our sheets are designed with chemical composition that makes our sheets resistant against cracking and discolouration that ensures the sheets are long-lasting. That is why our EPDM rubber sheets are excellent for outdoor applications and are very often recommended for environmental purposes. Additionally, EEPO Industrial strives to continuously be the preferred EPDM rubber sheet supplier in Malaysia, which is why we offer our customers a variety of EPDM rubber sheets to help ensure that our rubber sheets meet their needs.

SKU: d85030783ec3 Category:

Hardness: 65+/- 5 ShoreA

Density: 1.4g/cm3

Elongation: 350%

Tensile strength: 5.0Mpa

Width (mm) Length (m) Thickness (mm)
1200/1500 10 1
1200/1500 10 1.5
1200/1500 10 2
1200/1500 10 3
1200/1500 10 4
1200/1500 10 5
1200/1500 10 6
1200/1500 10 8
1200/1500 10 10
1200/1500 5 12
1200/1500 5 15
1200/1500 5 20 custom made
1200/1500 5 25 custom made
1000/1500 1/5 30 custom made
1000 1 40 custom made
1000 1 50 custom made
1000 1 80 custom made
1000 1 100 custom made

*For more customize sizes, please contact Mr Teh (016-2166 562).

SPECIFICATION TEST METHOD TEST RESULT UNIT
Specific Gravity ASTM D792 1.35 g/cm³
Hardness ASTM D2240 65 +/-5 Shore A
Tensile Strength ASTM D-412c 6 Mpa
Elongation JIS K6301 250 %
Tear Strength ASTM D-412 18 kgf/cm



WORKING TEMPERATURE MIN MAX
In Air +30° +90°
In Oil
In Water +90°

MAIN CHARACTERISTICS

ELASTICITY COMPRESSION ABRASION FLAME FUELS OZONE
Good Good Good Poor Unsuitable Poor
